CAD Master Model Construction

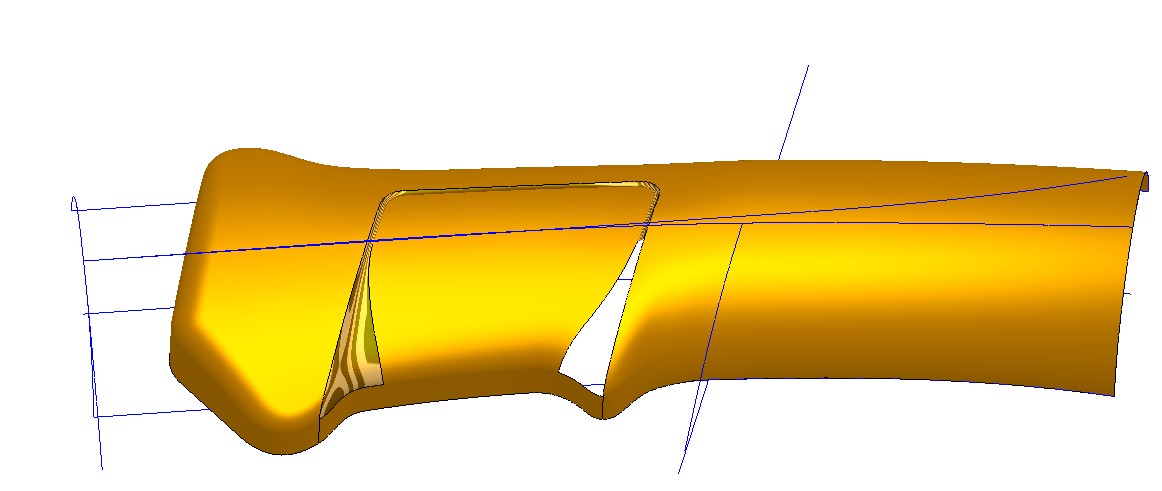

The main shape is constructed from three dimensional control curves. The control curves were generated to fully define industrial design’s imported surfaces.

Complex curved surfaces created using a variety of surface functions while maintaining the intended form.

High quality surfaces generated to produce top quality product finishes.

Tangency or curvature continuity preserved between quilts.

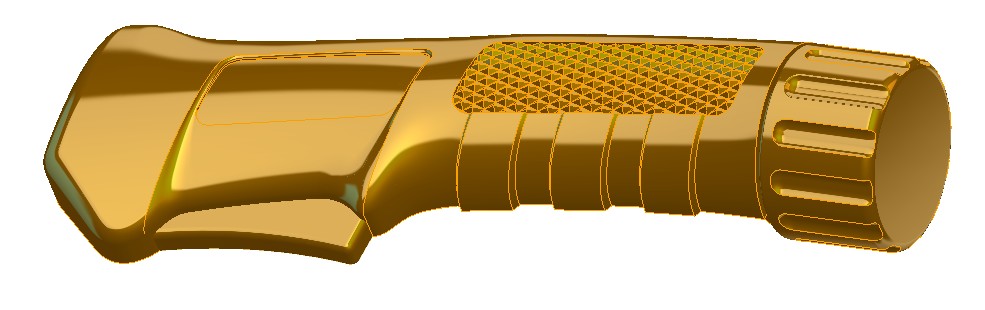

Knurled pattern mapped to curved surface of handle. Final model defines and associates the child parts driving their forms including; both halves of the handle, trigger, and knob.
